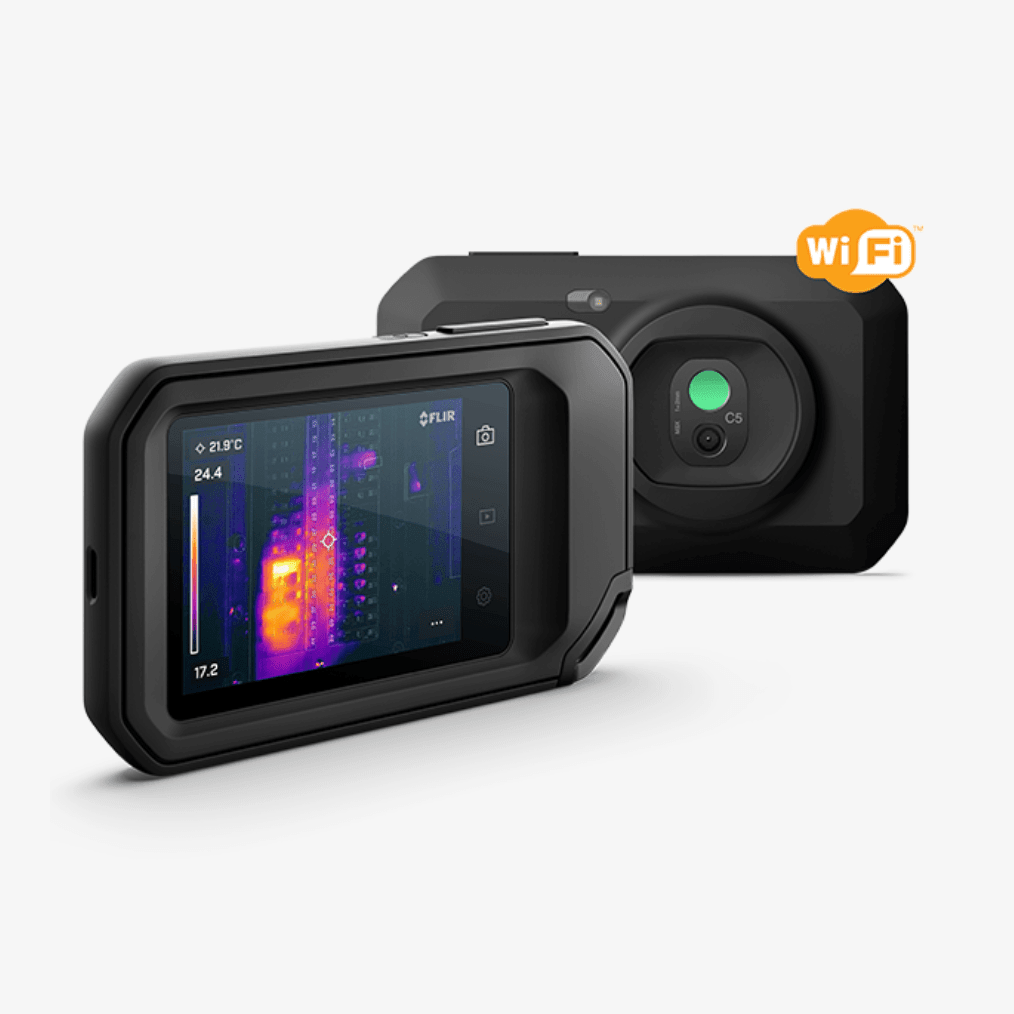

FLIR C5 Compact Thermal Camera
Rated 3.5/5 based on 11 customer reviews

FLIR C5 Compact Thermal Camera

  • Availability: In Stock
$1,314.50
Hurry! only 0 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!

With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 x 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.



SPECIFICATIONS
Accuracy
At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
Digital Camera
5 MP
Image Modes
Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Storage Media
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
IMAGING & OPTICAL
Color Palettes
Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Digital Camera
5 MP
FLIR Screen-EST Mode
No
Focus
Focus free
Gallery
Thumbnails and custom folder structure
Image Frequency
8.7 Hz
Image Modes
Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Minimum Focus Distance
Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in)
Spectral Range
8 to 14 µm
MEASUREMENT & ANALYSIS
Accuracy
At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
Camera size (L x W x H)
138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
Measurements correction
Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
Object Temperature Range
-20 to 400°C (-4 to 752°F)
Thermal Sensitivity
<70 mK
USER INTERFACE
Touchscreen
Capacitive touch
POWER
Battery operating time
4 hours
Battery type
Rechargeable built-in Lithium ion battery
Charging system
USB-C (1 A)
Charging Time
2 hours
External Power Operation
5 V, USB-C
ENVIRONMENTAL & CERTIFICATIONS
Drop test
2 m (6.6 ft)
Encapsulation
Camera housing and lens: IP54 (IEC 60529)
Operating Temperature Range
-10 to 50°C (14 to 122°F)
Storage Temperature Range
-40 to 70°C (-40 to 158°F)
Tripod Mounting
UNC ¼"-20 (built-in)

With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 x 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.



Accuracy
At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
Digital Camera
5 MP
Image Modes
Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Storage Media
Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
IMAGING & OPTICAL
Color Palettes
Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Digital Camera
5 MP
FLIR Screen-EST Mode
No
Focus
Focus free
Gallery
Thumbnails and custom folder structure
Image Frequency
8.7 Hz
Image Modes
Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Minimum Focus Distance
Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in)
Spectral Range
8 to 14 µm
MEASUREMENT & ANALYSIS
Accuracy
At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
Camera size (L x W x H)
138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
Measurements correction
Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
Object Temperature Range
-20 to 400°C (-4 to 752°F)
Thermal Sensitivity
<70 mK
USER INTERFACE
Touchscreen
Capacitive touch
POWER
Battery operating time
4 hours
Battery type
Rechargeable built-in Lithium ion battery
Charging system
USB-C (1 A)
Charging Time
2 hours
External Power Operation
5 V, USB-C
ENVIRONMENTAL & CERTIFICATIONS
Drop test
2 m (6.6 ft)
Encapsulation
Camera housing and lens: IP54 (IEC 60529)
Operating Temperature Range
-10 to 50°C (14 to 122°F)
Storage Temperature Range
-40 to 70°C (-40 to 158°F)
Tripod Mounting
UNC ¼"-20 (built-in)
